Electric Car Wall Mounted Ev Charger Station 7kw 11Kw 32a Wifi Type 2 Wallbox Charger

Minimum Order Quantity : 20 Price : negotiation
Delivery Time : 8-10days Payment Terms : L/C,D/A,D/P,T/T
Supply Ability : 500000 PIECE PER MONTH
Place of Origin: CHINA Brand Name: EVCOME
Certification: CE/TUV/ROHS/FCC Model Number: SHYR-M07

Detail Information

Material: Pc+abs Model Number: SHYR-M07
Product Name: OCPP EV CHARGING STATION Brand Name: Evcome
Rated Input AC Voltage: 220V-250V Operating Frequency: 47~63Hz
Rated AC Operating Current: 32 A;7KW IP Rating: IP55
Operating Temperature: -20℃~55℃ Storage Temperature: -40℃~85℃
Connector Power Line Contact: 40A,277v Connector Mechanical Operating Life: ≥10000
Residual Current Protection Rated Action Time: ≤0.1 S Package: Customized
Color: Black(custom)
High Light:

wall mounted electric car charger

,

wall mounted electric car charging stations

,

wall mounted ev charging station

Product Description

Mode1 Wall-mounted Ev Cars Charging Stations 7 11 kw 32a Wifi Type 2 Wallbox Ev Charger For Electric Vehicle Charging













SHYR-M07 is a basic wall-mount three phase AC EV charger. It is easy to install, stable in performance, and provides complete protection function.  It supports 4G/Ethernet/WiFi communication with 3rd party system for remote monitoring/maintain/upgrade. The charger can optionally equip with a column support installed outdoors.



Power Suppply
3P+N+PE
Rated Voltage
400VAC±10%(50Hz±5Hz)
Output voltage
400VAC±20%
Output current
16A/32A
Output power
11KW/22KW
Electric energy measurement
Accuracy Class 1 energy meter
Connector Type
Type 1, Type 2, GB/T
Cable length
5m (Custom)
Protection functions
Over voltage/under voltage protection, over current/short circuit protection, over/under temperature protection, lightning
protection, emergency stop protection, RCD Type A and DC 6mA RCD leakage protection.
Communication
Ethernet/WIFI/4G LTE
Protocol
OCPP-1.6 (JSON)
Insulation resistance
1000VDC≥10MΩ
Connector type
IEC 62196-2
Standards
IEC 61851-1, IEC 62196-1/2
Ingress Protection(IP/IK rating)
IP55
Installation method
wall mount/Floor standing
Shell material
(PC+ABS)-Blend
Product Dimension
300mm*420mm*153.8mm
Operating Temperature
-30℃-60℃
Storage Temperature
-40℃-80℃
Altitude
≤2000m
Operating Humidity
≤95%, non-condensing



Product Advantages:
cost-effective, practical,wide usage,4G communication

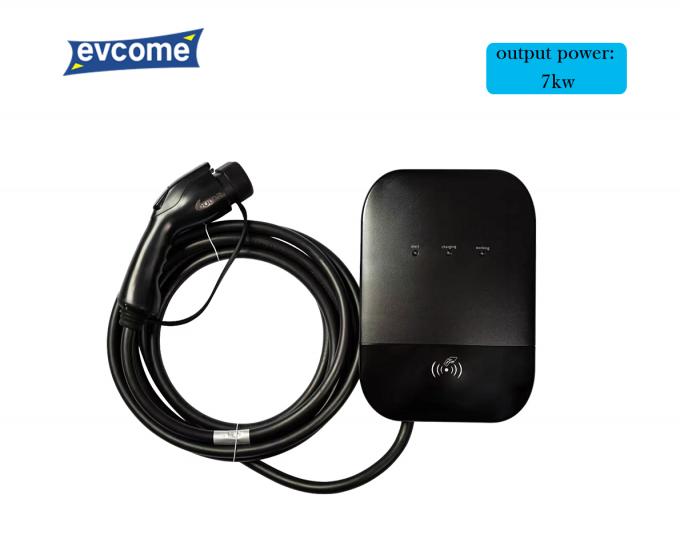

Electric Car Wall Mounted Ev Charger Station 7kw 11Kw 32a Wifi Type 2 Wallbox Charger 0

Such kind smart wall box is widely used by our clients just like our portable evchargers.You can use anytime you want and charger your car faster than common3.7kw protable charger in public place

Electric Car Wall Mounted Ev Charger Station 7kw 11Kw 32a Wifi Type 2 Wallbox Charger 1

Charging Piles with plug and play

Charging Piles with 4G communication, APP, online update

Electric Car Wall Mounted Ev Charger Station 7kw 11Kw 32a Wifi Type 2 Wallbox Charger 2

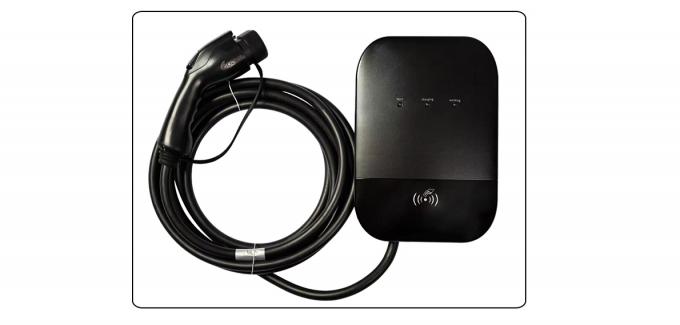

Electric Car Wall Mounted Ev Charger Station 7kw 11Kw 32a Wifi Type 2 Wallbox Charger 3

CAUTION:



1.Don/t submerge the EV charging cable in water

2.Don't step on ,fold or knot the cable

3.Don't drop the evcharging box or place a heavy object on it

4.Don't place the charging cable near high temperature object when charging

5.Don't operate the EVSE in temperatures beyond its operating range of -30℃to 60℃

6.Power distribution is done by the professionals

7.Don't put fingers into the charging connector when the power plug is still connecting to the power

8.Don't use this EV charging box when the cable is damaged

9.The EV charging box is only for EV charging using

10.Don' use this device with other brand's extension cord or adapter

Electric Car Wall Mounted Ev Charger Station 7kw 11Kw 32a Wifi Type 2 Wallbox Charger 4
