CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A

Minimum Order Quantity : 2 pcs Price : negotiation
Packaging Details : 350(H) × 240(W) × 95(D)mm Delivery Time : 8-10 work days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 20000 PIECE PER MONTH
Place of Origin: SHANGHAI Brand Name: EVCOME
Certification: CE UKVA ROHS Model Number: EV-HW

Detail Information

Input Voltage: 220V Power Rating: 3.6KW/7KW/11KW/22KW
Output Current: 16A/32A Design Standard: IEC 61851
Working Temperature: -40-+65℃ IP Grade: IP65
Cable Length: 5Mor Other Size Customizable Weight: 8KG
Dimension: 350(H) × 240(W) × 95(D)mm Communication Interface: WIFI/4G/OCPP1.6/LAN (customize)
High Light:

UKCA AC EV Charger

,

UV Protection Wallbox Car Charger

,

32A AC EV Charger Gun Line

Product Description

EV wall box chargers are designed to be mounted on a wall or fixed structure, providing a dedicated charging point for your electric vehicle. They are commonly installed in residential garages, parking lots, workplaces, or other convenient locations.EV wall box chargers come in various power output options, typically ranging from 3.7 kW to 22 kW or higher. The power output determines the charging speed, with higher power chargers delivering faster charging rates. The power output should be selected based on your vehicle's charging capabilities and your charging needs.



Products Description
Input & Output ⚡
Input voltage / Output voltage
220V / 380V
Output current
32A / 16A
Max power
3.6kw/7kw / 11kw/22kw
Input frequency
50Hz
Standby power consumption
<3W
Charging interface type
TYPE 1(SAE J1722), TYPE 2 (IEC 61851),GBT(20234)
Protection ✨
Over-voltage protection
grounding protection
under-voltage protection
over-temperature protection
overload protection
low-temperature protection
earth leakage protection
lightning protection
Working environment
Applicable scene
Indoor / Outdoor
Operating temperature
-40℃ ~ +65℃
Height above sea level
<2000m
Operating humidity
5% ~ 95%, non-condensation
Protection level
IP65
Cooling method
Natural cooling
MTBF
100,000 hours
Special protection
UV protection design
Appearance structure
Shell material
Black tempered glass panel, PC body
Equipment dimension
380*240*98mm ( L*W*H )
Installation method
Wall-mounted
Wiring method
Getting in and going out from the bottom
Equipment weight
8kg
Length
5m or customized
Product Introduction

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 0



Product selling points

EV wall box chargers typically operate on standard single-phase AC electrical systems. The voltage can vary depending on the country or region, such as 220V or 240V in many locations. The current rating of the charger, measured in amps (A), determines the maximum charging current it can deliver to the vehicle.EV wall box chargers come with charging cables that have connectors compatible with the charging port of your electric vehicle. The connector type can vary depending on the charger and the vehicle's charging standard, such as Type 1 (J1772) or Type 2 (Mennekes). It's important to ensure compatibility between the charger's connector and your EV's charging port.



CHARGING BOX                                         EV CONNECTOR                                   TPU CABLE

Small size,Easy to transport                         ABS PC injection moulding casing          Durable and anticorrosion

High compatibility                                         fire standing of UL94V_0.                        Easy to bend,Long service life

Waterproof grade:IP65                                 meet the harsh working terrain                High resistance to cold /high temperature

Structural strength:IK 10                              excellent electrical conductivity

Over- voltage protection/lightning protection

Certified by authorities (CE,UKCA,ROHS)

Real-time monitor on charging temperature



CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 1

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 2

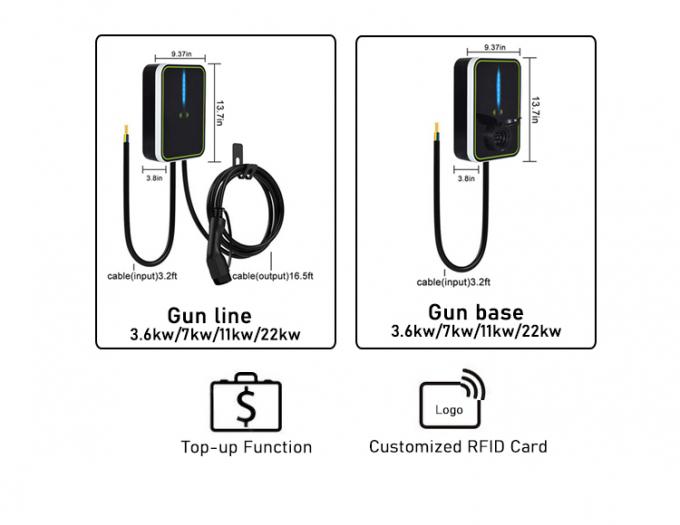

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 3

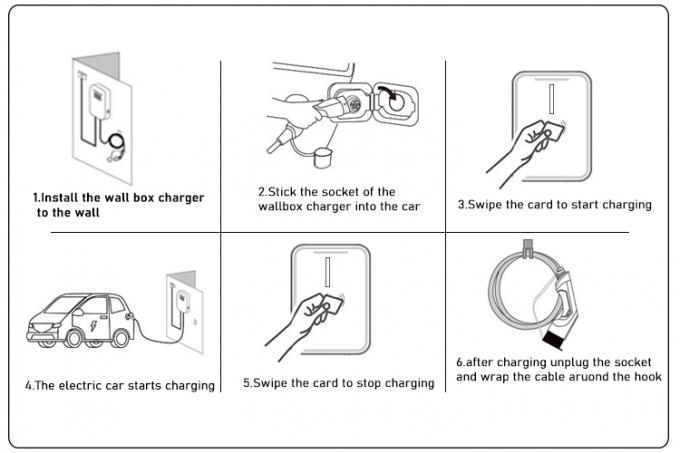

Instructions For Use

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 4

Product Description



This is a basic wall-mount charger and suitable for home use. It is easy to install,stable in performance, and has a completeprotection mechanism.The LCD flash canshow the detailed charging status. The charger can be used with stand.



Please install the electric charger strictly according to the instructions for installation
Do not use the charger for other purposes except for electric car charging
Do not connect the circuit yourself without professional guidance



PLEASE PAY ATTENTION TO:Please do not disassemble and assemble the machine without permission,
if it causes damage, you will not be able to enjoy after-sales service

Product Characteristic



CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 5





★Multiple Protections Ensure Safe Use

Safety always comes first. Our EV car charger has built-in protections against Lightning, Current-leakage, Overcurrent, Over-heat, Under-voltage, and Over-voltage, as indicated by the LED varied flashing frequency. It will automatically power off if any abnormal situation happens in case of any damage to your car.

★Flame retardant material

Anti-combustion, using flame-retardant materials to prevent accidents

★HIGH QUALITY

CE certified, which makes the service life longer, the internal smart chip protects your car and circuit you can use it with confidence.

★UNIVERSAL

The charger is IEC 61851 compliant and capable of charging hybrid/plug-in electric vehicles.

★Weatherproof for Outdoor or Indoor Use

Waterproof grade IP65.Place and move your portable charger anywhere around your home both inside and out

★Safe & Secure

Our chargers have over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection.

★Professional customer service

EVCOME's customer service team provides technical support and a 12-month warranty. If you are not completely satisfied, please contact us and we will solve it for you!







Product Picture

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 6

Product Parameters

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 7

Customization

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 8

Package Size

CE UKCA ROHS AC EV Charger Wall Box Gun Line UV Protection With RFID 16A / 32A 9





Company Profile

EVCOME


EVCOME is a one of leading technical company in China which is specializing in EV charging products R&D and manufacturing . Our
headquarter is located in Shanghai city , office is about 30 minutes away from Pudong international airport by driving.

EVCOME’s main products contain EV charging stations, portable EV chargers, EV chargers cables, EV charging connectors, etc. All our products are certificated for each market, such as CE, TUV, CSA, FCC, UL, ROHS, etc, Also,EVCOME are able to do customization according to different customers demands, and we have been exported to EU,Middle East,South East Asia area etc..,

EVCOME has digital 2.0 production workshop and a professional R&D team with an annual production capacity of 200k pieces.
Sustainable, stable and fast docking supply capabilities is our commitment for customers.




Our Service

Customer Service

We provide very professional product consultation and introduction to fully match your needs

24-hour customer service team, ready to provide you with consultation and service

All customers will get one-on-one service.

Customized Service

We offer very flexible customization services like OEM/ODM

OEM includes color, logo, outer packaging, cable length, etc

ODM includes function setting, new product development, etc.

After Sales Service

We offer a one-year quality guarantee period for our products

We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours



FAQ
Q1:Are you a factory or trading company?
A1:We are a professional manufacturer of new and sustainable energy applications .

Q2:What is the warranty?
A2:12 months. In this period, we will supply technical support and replace the new parts by free, customers are in charge of delivery. Q3:What is your terms of packing?

A3:Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q4:What is your terms of payment?
A4:T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5:What is your terms of trade?
A5:EXW, FOB, CFR, CIF, DAP,DDU,DDP

Q6:How about your delivery time?
A6:Generally, it will take 3 to 7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7:What is your sample policy?
A7:We can supply the sample if We have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q8:Do you test all your goods before delivery?
A8:Yes, we have 100% test before delivery.,

Q9:What's the difference between Movable Charger and Wallbox Charger?
A9:In addition to the obvious appearance difference, the main protection level is different: wallbox charger protection level is IP54, available outdoors;And the Movable Charger protection level is lP43, rainy days and other weather can not be used outdoors.

Q10:How AC EV charger works?
A10:The output of the AC charging post is AC, which requires the OBC to rectify the voltage itself, and is limited by the power of the OBC, which is generally small, with 3.3 and 7kw being the majority.

Q11:What EV charger do Ineed?
A11:It is best to choose according to the OBC of your vehicle, e.g. if the OBC of your vehicle is 3.3KW thenyou can onlv charae vour vehicle at 3 3KW even if vou buy 7KW or 22KW.
