EVCOME Ev Wall Box Charging Station (220V 7KW 32A) With RFID Type 1 Type 2 GBT CE SAA UKCA ROHS
Contact Person : Claire
Phone Number : +8617321236228
Whatsapp : +8617321236228
| Minimum Order Quantity : | 2 pcs | Price : | negotiation |
|---|---|---|---|
| Packaging Details : | 350(H) × 240(W) × 95(D)mm | Delivery Time : | 8-10 work days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 20000 PIECE PER MONTH |
| Place of Origin: | SHANGHAI | Brand Name: | EVCOME |
|---|---|---|---|
| Certification: | CE UKVA ROHS | Model Number: | EV-HB |
|
Detail Information |
|||
| Input Voltage: | 220V | Power Rating: | 3.6KW/7KW/11KW/22KW |
|---|---|---|---|
| Output Current: | 16A/32A | Design Standard: | IEC 61851 |
| Working Temperature: | -40-+65℃ | IP Grade: | IP65 |
| Cable Length: | 5Mor Other Size Customizable | Weight: | 8KG |
| Dimension: | 350(H) × 240(W) × 95(D)mm | Communication Interface: | WIFI/4G/OCPP1.6/LAN (customize) |
| High Light: | Electric Car Wallbox Charger Gun Base,OCPP 1.6 Payment Wallbox Charger,Wallbox AC EV Charger |
||
Product Description
|
Input & Output ⚡
|
||||
|
Input voltage / Output voltage
|
220V / 380V
|
Output current
|
32A / 16A
|
|
|
Max power
|
3.6kw/7kw / 11kw/22kw
|
Input frequency
|
50Hz
|
|
|
Standby power consumption
|
<3W
|
Charging interface type
|
TYPE 1(SAE J1722), TYPE 2 (IEC 61851),GBT(20234)
|
|
|
Protection ✨
|
||||
|
Over-voltage protection
|
✅
|
grounding protection
|
✅
|
|
|
under-voltage protection
|
✅
|
over-temperature protection
|
✅
|
|
|
overload protection
|
✅
|
low-temperature protection
|
✅
|
|
|
earth leakage protection
|
✅
|
lightning protection
|
✅
|
|
|
Working environment
|
||||
|
Applicable scene
|
Indoor / Outdoor
|
Operating temperature
|
-40℃ ~ +65℃
|
|
|
Height above sea level
|
<2000m
|
Operating humidity
|
5% ~ 95%, non-condensation
|
|
|
Protection level
|
IP65
|
Cooling method
|
Natural cooling
|
|
|
MTBF
|
100,000 hours
|
Special protection
|
UV protection design
|
|
|
Appearance structure
|
||||
|
Shell material
|
Black tempered glass panel, PC body
|
|||
|

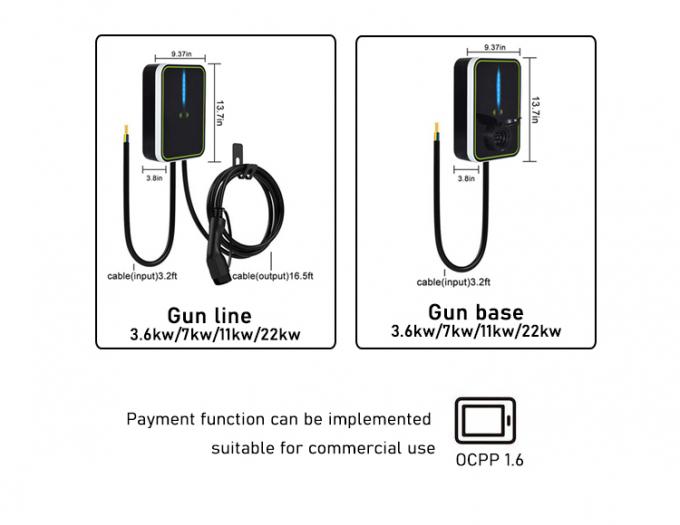

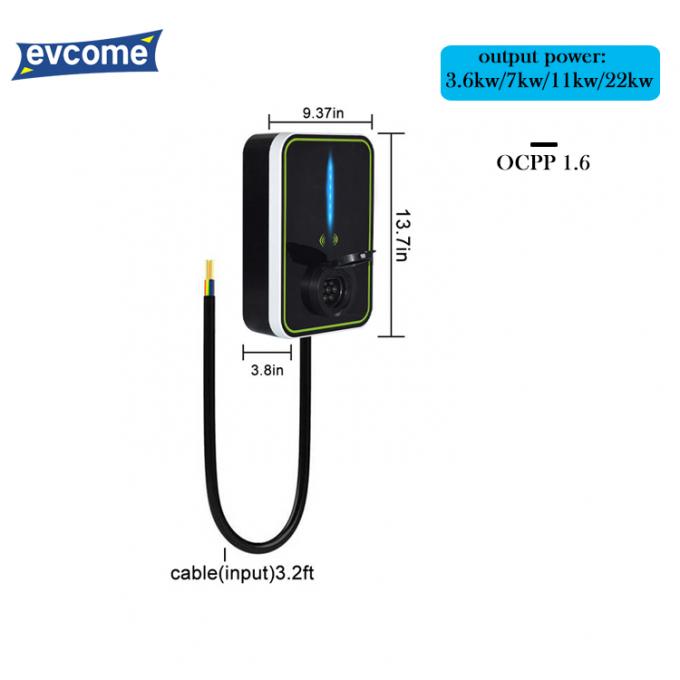

Equipment dimension
|
380*240*98mm ( L*W*H )
|
|||
|
Installation method
|
Wall-mounted
|
|||
|
Wiring method
|
Getting in and going out from the bottom
|
|||
|
Equipment weight
|
8kg
|
Length
|
5m or customized
|
|
Product selling points
Installing an EV wall box charger generally requires a dedicated electrical circuit and the expertise of a licensed electrician. The installation process involves proper electrical connections, compliance with local electrical codes, and potential coordination with your utility company for any necessary upgrades.
CHARGING BOX EV CONNECTOR TPU CABLE
Small size,Easy to transport ABS PC injection moulding casing Durable and anticorrosion
High compatibility fire standing of UL94V_0. Easy to bend,Long service life
Waterproof grade:IP65 meet the harsh working terrain High resistance to cold /high temperature
Structural strength:IK 10 excellent electrical conductivity
Over- voltage protection/lightning protection
Certified by authorities (CE,UKCA,ROHS)
Real-time monitor on charging temperature
Product Description
This is a basic wall-mount charger and suitable for home use. It is easy to install,stable in performance, and has a completeprotection mechanism.The LCD flash canshow the detailed charging status. The charger can be used with stand.

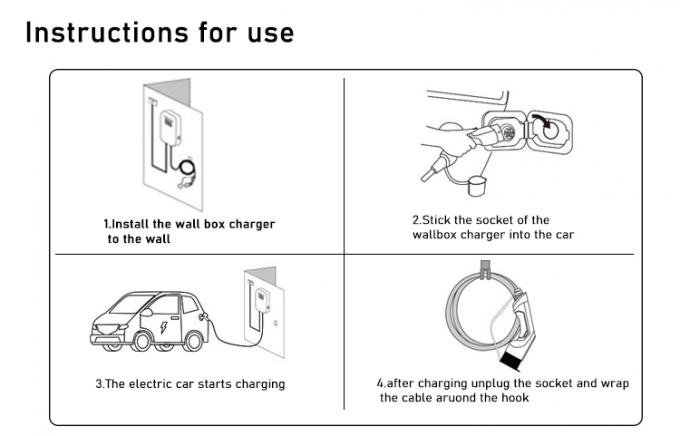

★Please install the electric charger strictly according to the instructions for installation
★Do not use the charger for other purposes except for electric car charging
★Do not connect the circuit yourself without professional guidance
PLEASE PAY ATTENTION TO:Please do not disassemble and assemble the machine without permission,
if it causes damage, you will not be able to enjoy after-sales service
Product Characteristic
Product Picture
Product Parameters
Customization
Package Size
Company Profile
EVCOME
EVCOME is a one of leading technical company in China which is specializing in EV charging products R&D and manufacturing . Our
headquarter is located in Shanghai city , office is about 30 minutes away from Pudong international airport by driving.
EVCOME’s main products contain EV charging stations, portable EV chargers, EV chargers cables, EV charging connectors, etc. All our products are certificated for each market, such as CE, TUV, CSA, FCC, UL, ROHS, etc, Also,EVCOME are able to do customization according to different customers demands, and we have been exported to EU,Middle East,South East Asia area etc..,
EVCOME has digital 2.0 production workshop and a professional R&D team with an annual production capacity of 200k pieces.
Sustainable, stable and fast docking supply capabilities is our commitment for customers.
Our Service
Customer Service
★ We provide very professional product consultation and introduction to fully match your needs
★ 24-hour customer service team, ready to provide you with consultation and service
★ All customers will get one-on-one service.
Customized Service
★We offer very flexible customization services like OEM/ODM
★OEM includes color, logo, outer packaging, cable length, etc
★ODM includes function setting, new product development, etc.
After Sales Service
★We offer a one-year quality guarantee period for our products
★We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours
