EVCOME DC Ev Charger Wall Box (40KW 380V 120A) OEM ODM With CCS1 CCS2 GBT CHAdeMo Plug Customized

Contact Now

EVCOME DC Ev Charger Wall Box (40KW 380V 120A) OEM ODM With CCS1 CCS2 GBT CHAdeMo Plug Customized

Name: EVCOME DC Ev Charger Wall Box (40KW 380V 120A) OEM ODM With CCS1 CCS2 GBT CHAdeMo Plug Customized
Brand: EVCOME
SKU: EVCOME
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (145 reviews)

Minimum Order Quantity :	2 pcs	Price :	negotiation
Delivery Time :	8-10days	Payment Terms :	L/C,D/A,D/P,T/T
Supply Ability :	500000 PIECE PER MONTH

Brand Name:	EVCOME	Certification:	CE/TUV/ROHS/FCC

Detail Information
Place Of Origin:	China	Model Number:	EV-WD-40
Input Voltage:	380V±15%	Rated Power:	40KW
Output Voltage:	AC380V	Output Current:	120A
Operating Temperature:	-25℃~85℃	Protection Level:	IP54
Charging Model:	CCS1,CCS2,CHAdeMo,GBT	Billing Method:	Efficacy/Time
Cable Length:	5 M(Custom)
High Light:	300kw fast charger , portable dc fast charger for ev , fast dc charger for ev

Product Description

Products Description

Input & Output
Input voltage / Output voltage	220V /750V	Output current	20A
Max power	7kw	Input frequency	50Hz
Standby power consumption	<3W	Charging interface type	CCS1(SAE J1722), CCS2(IEC 61851),GBT(20234),CHAdeMo 2.0
Protection
Over-voltage protection	Yes	grounding protection	Yes
under-voltage protection	Yes	over-temperature protection	Yes
overload protection	Yes	low-temperature protection	Yes
earth leakage protection	Yes	lightning protection	Yes
Working environment
Applicable scene	Indoor / Outdoor	Operating temperature	-40℃ ~ +85℃
Height above sea level	<2000m	Operating humidity	5% ~ 95%, non-condensation
Protection level	IP54	Cooling method	Natural cooling
MTBF	100,000 hours	Special protection	UV protection design
Structure Appearance		Certificate
Equipment dimension	*560390180mm ( LWH )*	CE	UKCA
Installation method	Wall-mounted	ROHS	CB
Wiring method	Bottom enter&out	SAA	ICC
Equipment weight	22kg	CSA
Length	5m Or Customized

Product Introduction

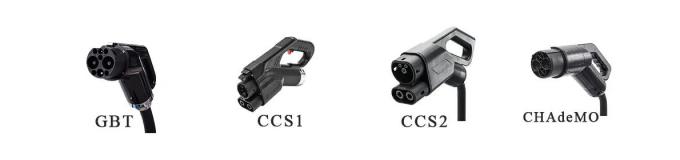

Different Charging Gun Standards Can Be Customized.

Product selling points

PRODUCT SELLING POINT EV CONNECTOR TPU CABLE

LCD Display ABS PC injection moulding casing Durable and anticorrosion

Easy Operation Mode Plug & Play Fire standing of UL94V_0 Easy to bend,Long service life

Adjustable current, Automatic power off after charging Meet the harsh working terrain High resistance to cold

Conforms to a variety of implementation standards Excellent electrical conductivity High temperature

and is suitable for many countries

Product introduction

EVCOME DC Ev Charger Wall Box (40KW 380V 120A) OEM ODM With CCS1 CCS2 GBT CHAdeMo Plug Customized 2

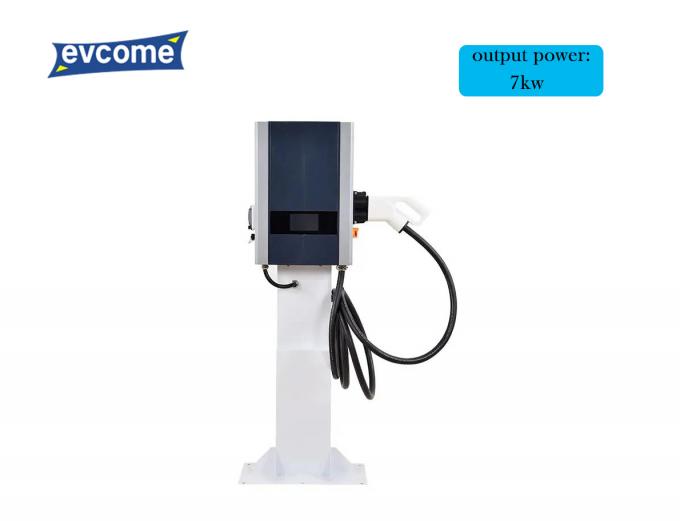

We can provide two installation methods for you to choose,Ev Charging Pile or Wall Box Ev Charger

Product Description

This is a basic wall-mount charger and suitable for home use. It is easy to install,stable in performance, and has a completeprotection mechanism.The LCD flash canshow the detailed charging status. The charger can be used with stand.

★Please install the electric charger strictly according to the instructions for installation
★Do not use the charger for other purposes except for electric car charging
★Do not connect the circuit yourself without professional guidance

PLEASE PAY ATTENTION TO:Please do not disassemble and assemble the machine without permission,if it causes damage, you will not be able to enjoy after-sales service

Product

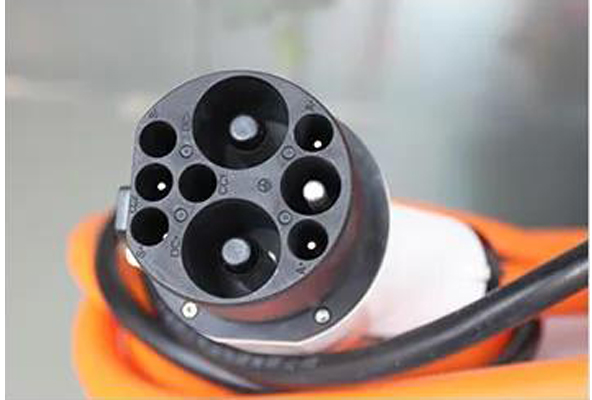

1.New 9 Holes Charging Plug CCS1,CCS2, CHAdeMo,GBT Standard Can be Customize

2.Space Silver Spray Material Durable Oxidation Resistance EVCOME DC Ev Charger Wall Box (40KW 380V 120A) OEM ODM With CCS1 CCS2 GBT CHAdeMo Plug Customized 4

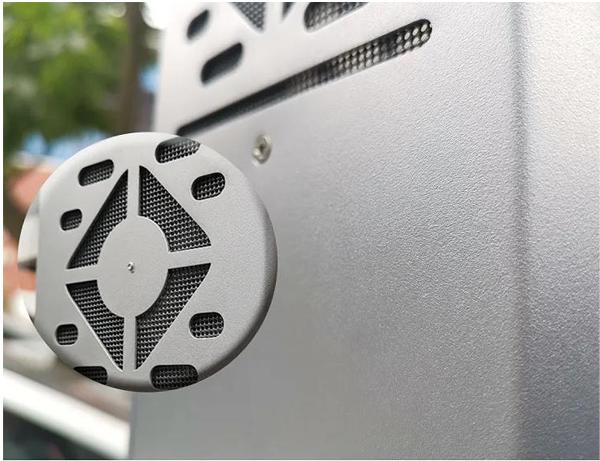

3.Metal Cable Gland Attractive and Durable

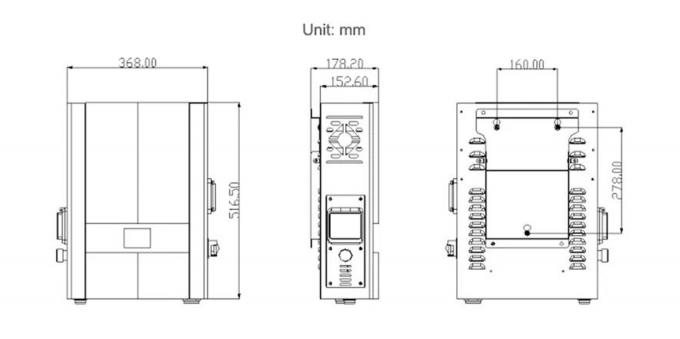

Product Parameters

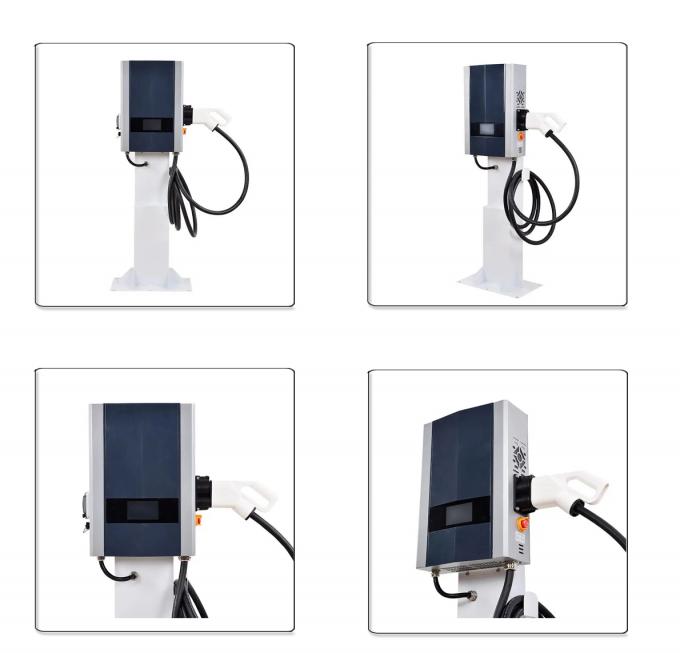

Product Picture

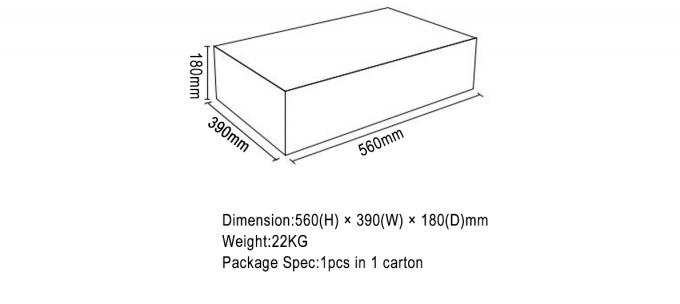

Package Size

Our Service

Customer Service

★ We provide very professional product consultation and introduction to fully match your needs

★ 24-hour customer service team, ready to provide you with consultation and service

★ All customers will get one-on-one service.

Customized Service

★We offer very flexible customization services like OEM/ODM

★OEM includes color, logo, outer packaging, cable length, etc

★ODM includes function setting, new product development, etc.

After Sales Service

★We offer a one-year quality guarantee period for our products

★We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours

Drop Shipping

★We have our own warehouses overseas, making delivery more convenient and faster
