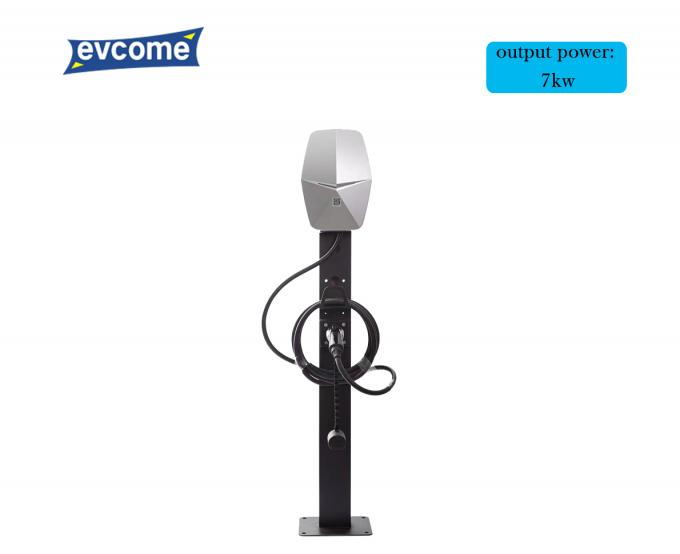

7KW 11kw Mode 2 EV Charger 230v 32A Type 2 Charging Point Plug 5 Meters Cable

Minimum Order Quantity : 20 Price : negotiation
Delivery Time : 8-10days Payment Terms : L/C,D/A,D/P,T/T
Supply Ability : 500000 PIECE PER MONTH
Place of Origin: CHINA Brand Name: EVCOME
Certification: CE/TUV/ROHS/FCC Model Number: SHYR-03

Detail Information

Material: ABS+PC Installation: Wall-mounted/floor-standing
Protection: IP66 Input/Output: 220VAC±20%/ 50Hz±5Hz
Power Factor: ≥0.98 Output Current: 32A
OutputPower: 7KW Cable Length: 5 Meters(custom)
Chargeing Method: Swipe Card Charge Connector: Type 2 Plug
Operating Temperature: -40℃-65℃ Storage Temperature: -40℃-85℃
Operating Humidity: Non-condensing
High Light:

11kw ev charger

,

Mode 2 EV Charger 230v

,

ev type 2

Product Description

Mopde2 Evcharger OEM/ODM 11kw Electric Car Ev Charger 32A,7KW Type 2 Plug with ev connector 5meters cable



This Wall-box EV charger is both suitable for residential and commercial use, the max output can reach 22kw to allow fast charge. its compact design can save more place. This AC EV Charging Stations M3W Series also can be mounted on the the floor-mounted attachment, applicable for outdoor installation like parking lot of office building, hospital, supermarket, Hotel and etc. for commercial EV charging.

Features:

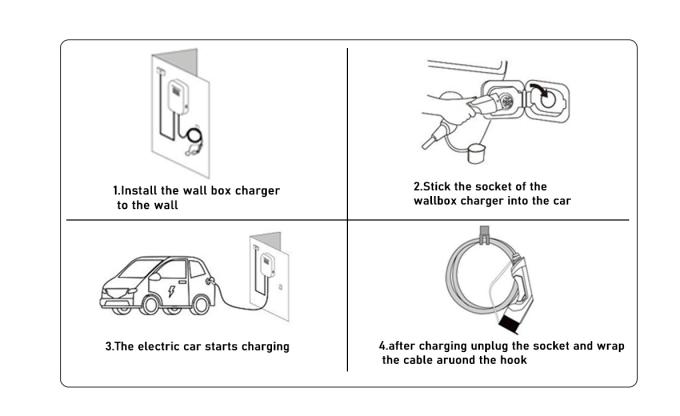

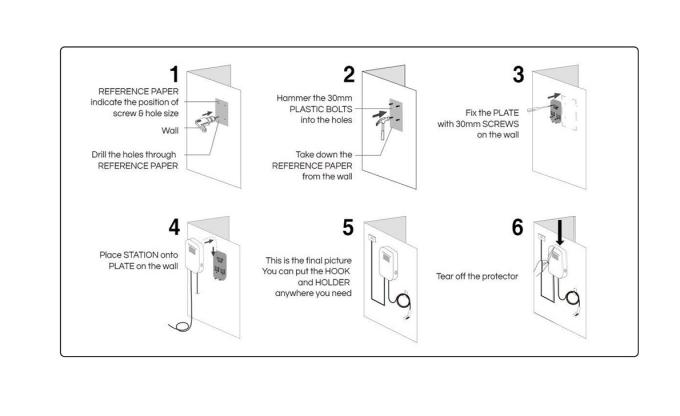

1. Easy to install

Only need to fix with bolts&nuts and connect the electric wiring according to the product introduction

2. Simple to charge

Plug&charge or Swapping card to charge or controlled by app(custom ),it depends on your choice

3. Compatible with all

It’s built to be compatible with all the EVs with the type2 plug connectors. Type1 is also available with this model.

Input Type 1-phase
Rated Voltage 230VAC±10%
Rated Current 32A
Power Frequency 50Hz
Output Voltage 230VAC±10%
Rated Power 7KW
Charge Connector Type 2 Plug
Cable Length 5meters(custom)
Certification and Conformity CE/TUV/ISO/IEC 14443 RFID Card Reader
Charging protocol OCPP-1.6J
Residual Current Device DC 6mA+Type A AC 30mA
Ingress Protection
Electrical Protection

Over/Under Voltage Protection,Over Current Protection, Short Circuit

Protection, Over/Under Temperature Protection,Lightning Protec

tion,Ground Protection



Certification CE,TUV
Certification and Conformity IEC61851-1/-21,IEC62196-1/-2,SAE J1772

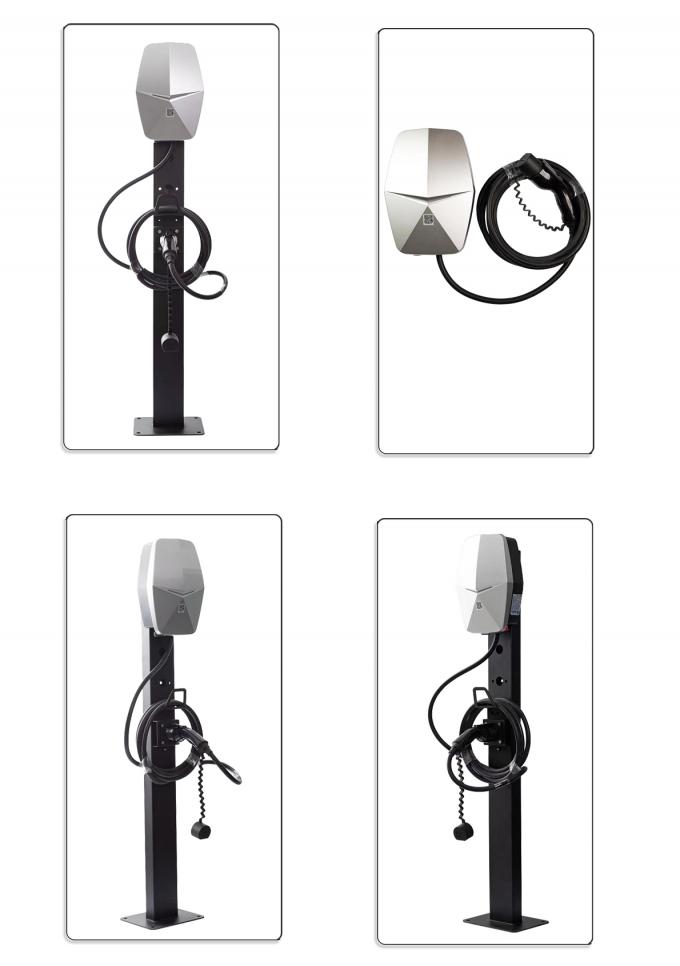

Mounting Wall-mount/Pole-mount
Storage Temperature -40℃ - +85℃
Operating Temperature -30℃ - +50℃
Max.Operating Humidity 95%,Non-condensing
Max. Operating Altitude 2000m
Product Dimension 336mm*240mm*122mm(W*D*H)

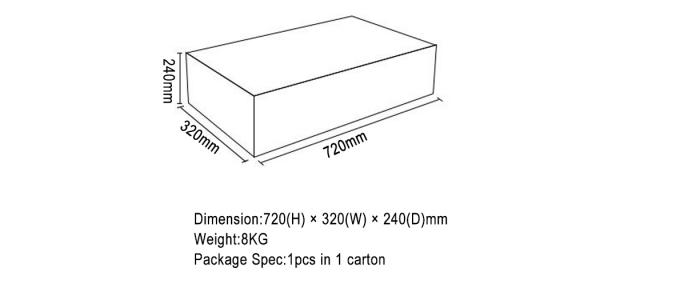

Package Dimension 710mm*240mm*320mm(W*D*H)
Weight 5kg(Net ) / 6kg(Gross)
Accessory Cable Holder,Pedestal(Optional)



7KW 11kw Mode 2 EV Charger 230v 32A Type 2 Charging Point Plug 5 Meters Cable 0





7KW 11kw Mode 2 EV Charger 230v 32A Type 2 Charging Point Plug 5 Meters Cable 1

7KW 11kw Mode 2 EV Charger 230v 32A Type 2 Charging Point Plug 5 Meters Cable 2

7KW 11kw Mode 2 EV Charger 230v 32A Type 2 Charging Point Plug 5 Meters Cable 3

Easy to use- the charging plug is ergonomically shaped and

the rubberized housing is dirt-repellent, water-repellent,UV-resistant as well as shock and impact resistant

7KW 11kw Mode 2 EV Charger 230v 32A Type 2 Charging Point Plug 5 Meters Cable 4

Charging Mode

Plug & Play: If you own a private parking area, no other person can get access to the charger, then you can choose the mode "Plug & Play" mode.

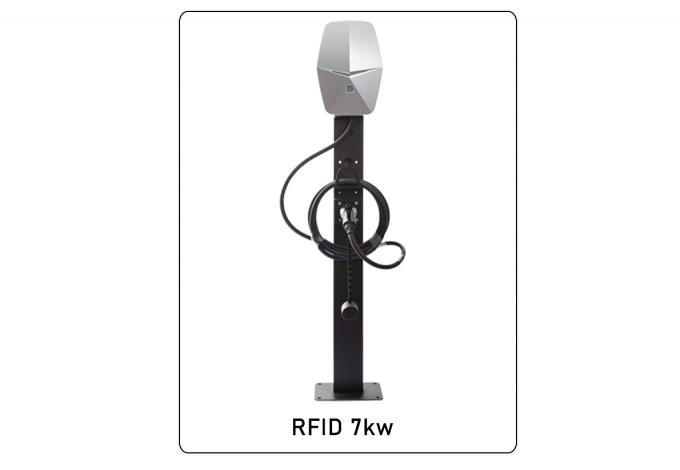

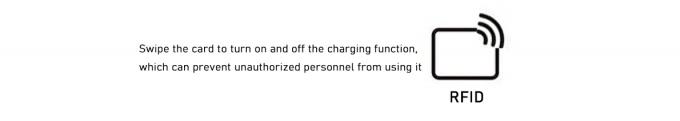

RFID Cards: If you are installing the EV charger outside, and someone can get access to the charger, then you can use the RFID cards to start and stop the charging.



Remote Control by App: Our M3W EV charger supports the remote control by App(custom), through OCPP 1.6J. If you have your own app, we can provide the technical service to connect your App. Now we also finished the development of our own App for home users.
