Office Home Mode 1 Ev Charging Solutions Single Phase Car Charging 7kw

Minimum Order Quantity : 20 Price : negotiation
Delivery Time : 8-10days Payment Terms : L/C,D/A,D/P,T/T
Supply Ability : 500000 PIECE PER MONTH
Place of Origin: CHINA Brand Name: EVCOME
Certification: CE/TUV/ROHS/FCC Model Number: SHYR-M01

Detail Information

Material: ABS+PC Installation: Wall-mounted/floor-standing
Protection: IP66 Input/Output: 220VAC±20%/ 50Hz±5Hz
Power Factor: ≥0.98 Output Current: 32A
OutputPower: 7KW Cable Length: 5 Meters(custom)
Chargeing Method: Swipe Card Charge Connector: Type 2 Plug
Operating Temperature: -40℃-65℃ Storage Temperature: -40℃-85℃
Operating Humidity: Non-condensing
High Light:

Home Mode 1 Ev Charging

,

Mode 1 Ev Charging Solutions

,

7kw single phase car charger

Product Description

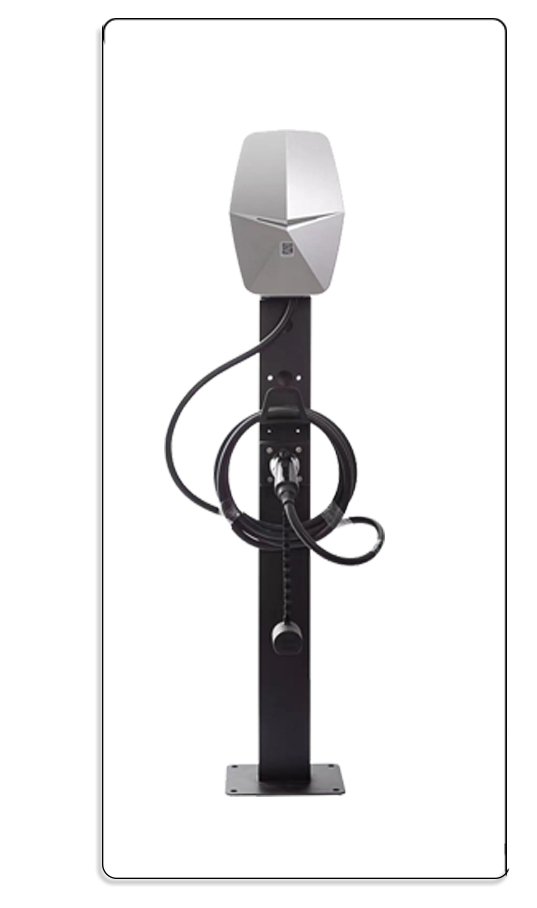

Evcharger 7Kw Type 2 Ev Charger Charging Station Single Phase Home Use Electric Vehicle Car

Electrical Specification
Working Environment
Input Voltage/Output voltage
230V (single Phase)
Protection degree
IP 66
Input frequency
47~63Hz
Environment temperature
-40℃ ~ +80℃
Max. output power
7kW (single Phase)
Relative humidity
0-95% non-condensing
Max. output current
32A  single Phase
Maximum altitude
<2000m
Charging interface type
IEC 62196-2
Cooling
Natural air cooling

Standby power consumption
<8W
Function and Accessory
Certificate
Ethernet/WIFI/4G/Bluetoth
No
CE
FCC
LCD
3.5-inch color display
ROHS
CCCs
RCD
Type A / Type A+ 6mA DC
CSA
IK 10
LED Indicator light
Yes
IP 66

Intelligent power adjustment
Yes


RFID
Opt


APP
Opt


1.High compatibility

Our EV charger is compatible with most electric vehicles that comply with the standard, IEC62196-2 standard or GB/T 20234.2 standard and SAEJ1772 standard

Office Home Mode 1 Ev Charging Solutions Single Phase Car Charging 7kw 0

2.Safe and reliable

The ev charger has passed the strict test of CE and has multiple protection including over voltage,under voltage,over-heating,overload, short circuit, leakage,lightning protection

Office Home Mode 1 Ev Charging Solutions Single Phase Car Charging 7kw 1

Office Home Mode 1 Ev Charging Solutions Single Phase Car Charging 7kw 2

Office Home Mode 1 Ev Charging Solutions Single Phase Car Charging 7kw 3

Office Home Mode 1 Ev Charging Solutions Single Phase Car Charging 7kw 4

3.RFID FUNCTION

The EV charger supports RFID function. The user can control through the RFID card and prevent the unauthorized use of the cardless user.

4.ROBUST ENCLOSURE

Water proof level IP55, you can use the item outdoor and do not have to worry even in rainy days.The shell is made of PA,light but robust,so it will not be easily damaged,The EV charger uses anti-theft screws.You can add a lock at the EV charger to prevent lost

5.CMS

Support OCPP, can connect to CMS via LAN or 4G. On the platform ,you can formulate price templates, manage RFID cards, monitor and manage EV Charger, and display all operation records
