2.Space Silver Spray Material Durable Oxidation Resistance
EVCOME DC Ev Charger Wall Box (40KW 380V 120A) OEM ODM With CCS1 CCS2 GBT CHAdeMo Plug Customized
Contact Person : Claire
Phone Number : +8617321236228
Whatsapp : +8617321236228
| Minimum Order Quantity : | 20 pcs | Price : | negotiation |
|---|---|---|---|
| Delivery Time : | 8-10days | Payment Terms : | L/C,D/A,D/P,T/T |
| Supply Ability : | 500000 PIECE PER MONTH |
| Place of Origin: | CHINA | Brand Name: | EVCOME |
|---|---|---|---|
| Certification: | CE/TUV/ROHS/FCC | Model Number: | EV-PD-15 |
|
Detail Information |
|||
| Input Voltage: | AC380V±15% | Rated Power: | 15KW |
|---|---|---|---|
| Output Voltage: | AC380V±15% | Output Current: | 38A |
| Communication: | Ethernet/3G/4G | Operating Temperature: | -25℃~+85℃ |
| Protection Level: | IP54 | Charging Mode: | CCS1 CCS2 GBT CHAdeMo |
| Weight: | 30KG | Display Screen: | 7 Inches |
| Cable Length: | 5 Meters(Custom) | Car Type: | Electric Cars |
| High Light: | ev dc charger for home,dc quick ev charger,dc ev charger home |
||
Product Description
|
Input & Output
|
||||
|
Input voltage / Output voltage
|
220V /750V
|
Output current
|
38A
|
|
|
Max power
|
15kw
|
Input frequency
|
50Hz
|
|
|
Standby power consumption
|
<3W
|
Charging interface type
|
CCS1(SAE J1722), CCS2(IEC 61851),GBT(20234),CHAdeMo 2.0
|
|
|
Protection
|
||||
|
Over-voltage protection
|
Yes
|
grounding protection
|
Yes | |
|
under-voltage protection
|
Yes |
over-temperature protection
|
Yes | |
|
overload protection
|
Yes |
low-temperature protection
|
Yes | |
|
earth leakage protection
|
Yes |
lightning protection
|
Yes | |
|
Working environment
|
||||
|
Applicable scene
|
Indoor / Outdoor
|
Operating temperature
|
-40℃ ~ +85℃
|
|
|
Height above sea level
|
<2000m
|
Operating humidity
|
5% ~ 95%, non-condensation
|
|
|
Protection level
|
IP54
|
Cooling method
|
Natural cooling
|
|
|
MTBF
|
100,000 hours
|
Special protection
|
UV protection design
|
|
|
Structure Appearance
|
Certificate | |||
|
Equipment dimension
|
560*390*180mm ( L*W*H )
|
CE | UKCA | |
|
Installation method
|
Wall-mounted
|
ROHS | CB | |
|
Wiring method
|
Bottom enter&out |
SAA | ICC | |
|
Equipment weight
|
22kg
|
CSA | ||
| Length | 5m Or Customized | |||
Different Charging Gun Standards Can Be Customized.
Product selling points
PRODUCT SELLING POINT EV CONNECTOR TPU CABLE
LCD Display ABS PC injection moulding casing Durable and anticorrosion
Easy Operation Mode Plug & Play Fire standing of UL94V_0 Easy to bend,Long service life
Adjustable current, Automatic power off after charging Meet the harsh working terrain High resistance to cold
Conforms to a variety of implementation standards Excellent electrical conductivity High temperature
and is suitable for many countries
Product introduction

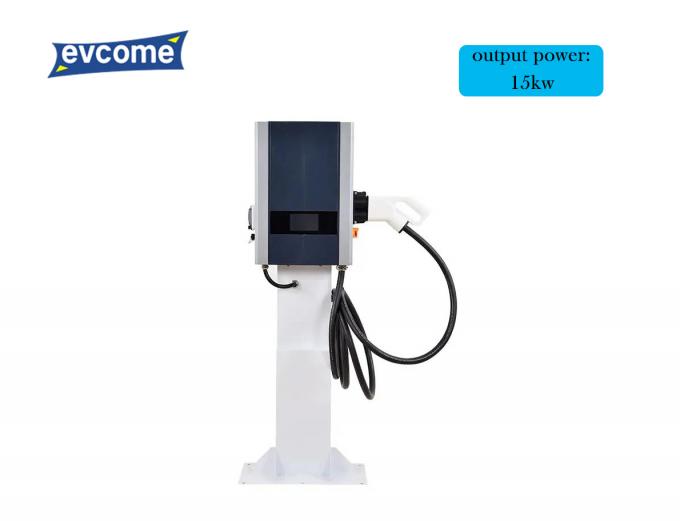

We can provide two installation methods for you to choose,Ev Charging Pile or Wall Box Ev Charger
Product Description
This is a basic wall-mount charger and suitable for home use. It is easy to install,stable in performance, and has a completeprotection mechanism.The LCD flash canshow the detailed charging status. The charger can be used with stand.
★Please install the electric charger strictly according to the instructions for installation
★Do not use the charger for other purposes except for electric car charging
★Do not connect the circuit yourself without professional guidance
PLEASE PAY ATTENTION TO:Please do not disassemble and assemble the machine without permission,if it causes damage, you will not be able to enjoy after-sales service
Product
2.Space Silver Spray Material Durable Oxidation Resistance
3.Metal Cable Gland Attractive and Durable
Product Parameters
Product Picture
Package Size
Our Service
Customer Service
★ We provide very professional product consultation and introduction to fully match your needs
★ 24-hour customer service team, ready to provide you with consultation and service
★ All customers will get one-on-one service.
Customized Service
★We offer very flexible customization services like OEM/ODM
★OEM includes color, logo, outer packaging, cable length, etc
★ODM includes function setting, new product development, etc.
After Sales Service
★We offer a one-year quality guarantee period for our products
★We have a very professional team to solve all the problems encountered in the process of use, they will be at your service 24 hours
Drop Shipping
★We have our own warehouses overseas, making delivery more convenient and faster
